model: cn200
Capacity: 50m3/hr.
PARTICULARS:
Length Overall (LOA): 17m; Hull Dimension (LxWxH): 13mX3.5mX1.5m; Structure type: Box Structure (6mm Steel Thickness); Power Plant: 460 Hp Cummins Engine (or Equivalent); Pump Flow Rate: 50m3/hr @ 1000m Discharge Distance; Cutter Head Diameter: 1000mm; Vessel Weight: 20 Tons
model: cn250-150
Capacity: 150m3/hr
PARTICULARS:
Length Overall (LOA): 27m; Hull Dimension (LxWxH): 20mX3.5mX1.5m; Structure type: Box Structure (8mm Steel Thickness); Power Plant: 1200 Hp Cummins Engine (or Equivalent); Pump Flow Rate: 150m3/hr @ 1500m Discharge Distance; Cutter Head Diameter: 1200mm; Vessel Weight: 35 Tons
model: cn400
Capacity: 2500m3/hr
PARTICULARS:
Length Overall (LOA): 29m; Hull Dimension (LxWxH): 19mX7.5mX2.0m; Structure type: Box Structure (8mm Steel Thickness); Power Plant: 822 KW Cummins Engine (or Equivalent); Generator: Cummins 30KW (or equivalent); Auxiliary: 224 KW Cummins Engine (or equivalent); Pump Flow Rate: 2500m3/hr @ 1500m Discharge Distance; Cutter Head Diameter: 1450mm; Vessel Weight: 110 Tons.
model: cn500
Capacity: 4000m3/hr
PARTICULARS:
Length Overall (LOA): 36m; Hull Dimension (LxWxH): 27mX8.5mX2.5m; Structure type: Box Structure (8mm steel thickness); Power Plant: 1195 KW Cummins Engine (or Equivalent); Generator: Cummins 40 KW (or equivalent); Auxiliary: 298 KW Cummins Engine (or equivalent); Pump Flow Rate: 4000m3/hr @ 2000m Discharge Distance; Cutter Head Diameter: 1700mm; Vessel Weight: 190 Tons
model: cn550
Capacity: 4500m3/hr
PARTICULARS:
Length Overall (LOA): 38m; Hull Dimension (LxWxH): 27mX8.5mX2m; Structure type: Box Structure; Power Plant: 1493 KW Cummins Engine (or Equivalent); Generator: Cummins 40 KW (or equivalent); Auxiliary: 298 KW Cummins Engine (or equivalent); Pump Flow Rate: 4500m3/hr @ 2000m Discharge Distance; Cutter Head Diameter: 1700mm; Vessel Weight: 230 Tons

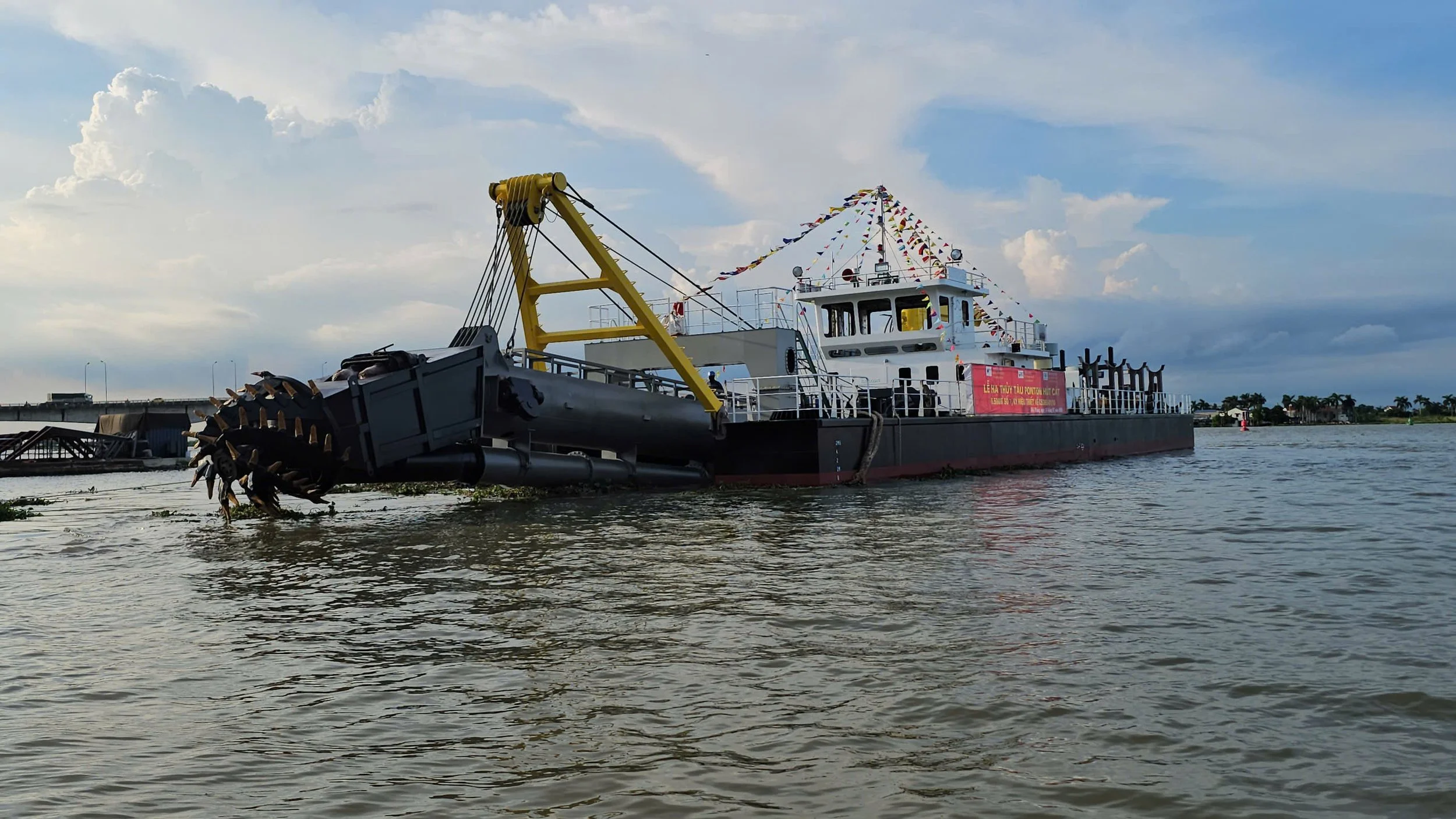

model: cn650-26”
Capacity: 6000m3/hr
PARTICULARS:
Length Overall (LOA): 46m; Hull Dimension (LxWxH): 46mX9mX2.5m; Structure type: Box Structure (8mm steel thickness); Power Plant: 1800 KW Mitsubishi Engine (or Equivalent); 759 KW Mitsubishi Engine (or equivalent); Pump Flow Rate: 5500-6000m3/hr @ 2000m Discharge Distance; Cutter Head Diameter: 1800mm; Vessel Weight: 230 Ton
model: cn250-100
Capacity: 100m3/hr.
PARTICULARS:
Length Overall (LOA): 20m; Hull Dimension (LxWxH): 14mX3.5mX1.5m; Structure type: Box Structure (6mm Steel Thickness); Power Plant: 700 Hp Cummins Engine (or Equivalent); Pump Flow Rate: 100m3/hr @ 1000m Discharge Distance; Cutter Head Diameter: 1000mm; Vessel Weight: 25 Tons

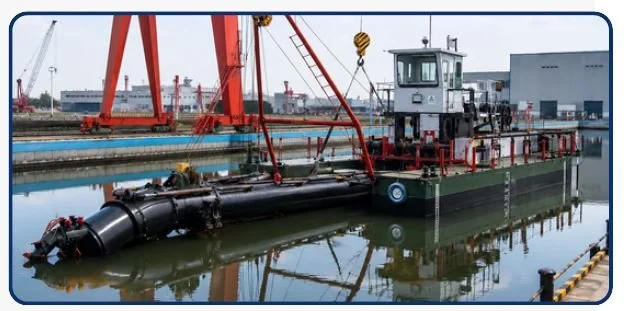

model: cn300
Capacity: 1500m3/hr
PARTICULARS:
Length Overall (LOA): 25m; Hull Dimension (LxWxH): 20mX3.5mX1.5m; Structure type: Box Structure (8mm Steel Thickness); Power Plant: 722 KW Cummins Engine (or Equivalent); Generator: Cummins 20KW (or equivalent); Pump Flow Rate: 1500m3/hr @ 1200m Discharge Distance; Cutter Head Diameter: 1350mm; Vessel Weight: 50 Tons
model: cn350
Capacity: 2000m3/hr
PARTICULARS:
Length Overall (LOA): 27m; Hull Dimension (LxWxH): 19mX7.5mX2.0m; Structure type: Box Structure (8mm Steel Thickness); Power Plant: 722 KW Cummins Engine (or Equivalent); Generator: Cummins 30KW (or equivalent); Auxiliary: 224 KW Cummins Engine (or equivalent); Pump Flow Rate: 2000m3/hr @ 1500m Discharge Distance; Cutter Head Diameter: 1450mm; Vessel Weight: 80 Tons
model: cn450
Capacity: 3000m3/hr
PARTICULARS:
Length Overall (LOA): 31m; Hull Dimension (LxWxH): 23mX7m; Structure type: Box Structure; Power Plant: 897 KW Cummins Engine (or Equivalent); Generator: Cummins 30KW (or equivalent); Auxiliary: 224 KW Cummins Engine (or equivalent); Pump Flow Rate: 3000m3/hr @ 1500m Discharge Distance; Cutter Head Diameter: 1500mm; Vessel Weight: 130 Tons.
model: cn500
Capacity: 4000m3/hr
PARTICULARS:
Length Overall (LOA): 36m; Hull Dimension (LxWxH): 27mX8.5mX2.5m; Structure type: Box Structure (8mm steel thickness); Power Plant: 1433 KW Cummins Engine (or Equivalent); Generator: Cummins 40 KW (or equivalent); Auxiliary: 298 KW Cummins Engine (or equivalent); Pump Flow Rate: 4000m3/hr @ 2000m Discharge Distance; Cutter Head Diameter: 1700mm; Vessel Weight: 190 Tons
model: cn650-24”
Capacity: 5500m3/hr
PARTICULARS:
Length Overall (LOA): 40m; Hull Dimension (LxWxH): 40mX9mX2.5m; Structure type: Box Structure ; Power Plant: 1875 KW Mitsubishi Engine (or Equivalent); Auxiliary: 759 KW Mitsubishi Engine (or equivalent); Pump Flow Rate: 5500m3/hr @ 2000m Discharge Distance; Cutter Head Diameter: 1800mm; Vessel Weight: 200 Ton
